Husqvarna Chainsaw Carburetor Adjustment Diagram
Ever feel like your trusty Husqvarna chainsaw is a little… grumpy? Like it’s sighing and sputtering instead of roaring like a majestic, wood-munching beast? You’re not alone! Sometimes, these magnificent machines just need a little tickle under the chin, and that’s where the magical world of carburetor adjustment comes in.
Think of your chainsaw’s carburetor as its tiny, very important stomach. It’s responsible for mixing just the right amount of fuel and air to make your chainsaw sing. And just like us, sometimes our stomachs get a little out of whack, leading to a grumpy performance.
Now, you might be picturing a mechanic in a white coat, hunched over tiny gears with a magnifying glass. But fear not! Adjusting your Husqvarna carburetor can be surprisingly straightforward, and with a little guidance, you’ll have your saw purring like a kitten in no time. Well, a kitten that can fell a small oak.
Let's talk about the star of our show: the Husqvarna chainsaw carburetor adjustment diagram. This isn't some ancient hieroglyphic that only rocket scientists can decipher. Nope, it's your friendly neighborhood roadmap to chainsaw happiness. It points out the little screws that control this magical fuel-air concoction.
Imagine you're trying to bake a cake. You need flour, sugar, eggs, and just the right amount of leavening agent. Too much or too little of any ingredient, and your cake might be a flat, sad pancake. Your chainsaw is the same way! The carburetor’s job is to get that recipe perfect.
When your chainsaw is acting up, it’s usually a sign that the fuel-air ratio is a bit off. Maybe it’s running too rich (too much gas, not enough air), making it sluggish and smoky. Or perhaps it’s running too lean (too much air, not enough gas), which can make it scream a little too high and hot, potentially causing damage.
This is where the Husqvarna chainsaw carburetor adjustment diagram becomes your best friend. It will typically highlight two or three little screws. These are the ‘H’ screw for high-speed adjustments, the ‘L’ screw for low-speed adjustments, and sometimes a ‘T’ screw for idle speed. Think of them as the volume knobs for your chainsaw’s performance!
The Power of the Diagram

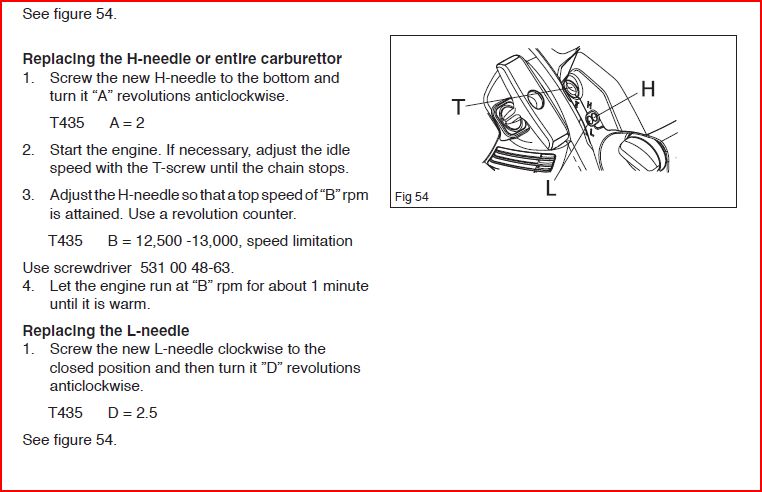

So, what exactly does this mystical diagram show us? It's usually a clear picture of the carburetor itself, with arrows pointing to those crucial adjustment screws. You’ll see labels like ‘H’, ‘L’, and sometimes ‘T’. It’s like a treasure map, but instead of gold, you’re finding optimal chainsaw performance!
The diagram will also likely indicate the general direction to turn these screws for richer or leaner mixtures. Generally, turning a screw counter-clockwise makes the mixture richer (more fuel), and turning it clockwise makes it leaner (less fuel). It’s a simple twist, but it can make a world of difference.
Without this diagram, you’d be fumbling around like a mole in a disco. You might accidentally turn the wrong thing, or turn it the wrong way, and end up making your chainsaw sound even more like a wounded duck. That’s why the diagram is your trusty compass.
Think of the ‘H’ screw as controlling the chainsaw’s ability to really unleash its fury. This is for when you’re cutting through thick logs, and your saw needs to be at its most powerful. If it’s bogging down under load, the ‘H’ screw might need a gentle tweak.
The ‘L’ screw, on the other hand, is all about the chainsaw’s gentle side. This affects how it idles and how it transitions from idle to acceleration. If your saw stalls when you try to give it gas, the ‘L’ screw is likely the culprit. It’s like making sure your chainsaw has a smooth takeoff.
And then there’s the ‘T’ screw, the unsung hero of idle. This one controls how fast your chainsaw’s engine spins when you’re not actively cutting. You want a nice, steady idle, not a frantic, buzzing noise that sounds like it’s about to vibrate off your workbench.
Unleashing Your Inner Mechanic (the Fun Kind!)
Now, let’s get to the fun part: actually making those adjustments. Remember, patience is a virtue, and so is a well-tuned chainsaw.
First, make sure your chainsaw is in a safe place. You don't want it roaring to life unexpectedly and making a break for it. Get your Husqvarna chainsaw carburetor adjustment diagram handy, and maybe a small screwdriver. Some adjustment tools are specifically designed for this, but a small, flat-head screwdriver often does the trick.
You’ll want to start by setting your idle speed. Get the engine warm, and then use your screwdriver to gently turn the ‘T’ screw until the engine idles smoothly. It shouldn’t be too fast or too slow. Imagine a gentle hum, not a frantic buzz.
Next, move on to the ‘L’ screw. This is where you ensure a smooth transition from idle to full throttle. You want to be able to squeeze the trigger and have your chainsaw respond instantly and powerfully, without sputtering or bogging down.
This might involve a few back-and-forth adjustments. You’ll rev the engine, listen to how it responds, and make tiny tweaks. It’s like tuning a guitar; you pluck a string, listen, and adjust.
Finally, tackle the ‘H’ screw. This is for when you’re really putting your chainsaw to work. You want consistent power throughout the cut. If your saw feels weak or hesitates when you’re really pushing it, this screw might need attention.
Remember, these are small adjustments. A quarter-turn here, a half-turn there. You’re not performing open-heart surgery on your chainsaw; you’re giving it a little tune-up.
And the reward? A chainsaw that purrs with power! It will start easier, run smoother, and have the muscle to tackle any job you throw at it. You’ll feel like a woodworking wizard, a lumberjack extraordinaire!
So, the next time your Husqvarna feels a bit under the weather, don’t despair. Grab that carburetor adjustment diagram, channel your inner mechanic (the fun kind!), and give your saw the TLC it deserves. Happy cutting!
