How Much Heat Is Produced In The 10 Ohm Resistor

Hey there, fellow curious minds! Ever wonder what happens when electricity decides to get a little… warm? We're diving into a super cool, and surprisingly hot, topic today: how much heat a simple 10 ohm resistor actually cooks up. No, seriously, it's way more interesting than it sounds. Think of it like a tiny electrical campfire, but instead of marshmallows, we're toasting electrons. Fun, right?

So, what's the deal with resistors? Imagine them as tiny speed bumps for electricity. They slow things down, and in doing so, they get a little feisty. This feistiness? It’s heat! And our 10 ohm buddy is our star today. Why 10 ohms? Well, it’s a nice, round number. Plus, 10 is like the Swiss Army knife of resistors. It pops up everywhere. It's the unsung hero of your toaster, your TV remote, and probably that weird blinking light on your modem.

Now, the amount of heat isn't just about the resistor itself. It's a team effort. The resistor is like the oven, but the electricity flowing through it is the chef. And you know how some chefs are super chill, while others are practically doing a flamenco while they cook? Same with electricity. The amount of "oomph" or voltage you give it, and how much of that "oomph" actually gets through, or the current, makes all the difference.

This is where things get a smidge scientific, but don't sweat it! We're talking about power. In the electrical world, power is measured in watts. Think of watts like the intensity of the heat. A tiny LED bulb might be 0.1 watts. A toaster? That’s a whole different beast, usually over 1000 watts. So, our 10 ohm resistor, depending on what we do with it, can be anything from a gentle whisper of heat to a surprisingly spicy sizzle.

Here’s the fun part: the formula! It’s not scary, I promise. It’s like a secret handshake for understanding heat. We've got a couple of cool ways to figure this out. The most direct one for heat, which we call dissipation, involves power. And power is super related to our friend, resistance, and either voltage or current.

The Power Trio: Voltage, Current, and Resistance!

Let’s meet our main players again. We’ve got:

• Voltage (V): The electrical pressure. Think of it as the push behind the electricity. Measured in Volts.
• Current (I): The flow of electricity. Think of it as how many electrons are zooming by. Measured in Amperes (or Amps).
• Resistance (R): Our trusty 10 ohm resistor. It’s the obstacle. Measured in Ohms (Ω).

Now, the magic happens when these guys play together. We can calculate the power (heat!) using a few handy formulas. The most common ones are:

Power (P) = Voltage (V) * Current (I)

And because of a brilliant law called Ohm’s Law (say hi to Georg Ohm!), we know that Voltage (V) = Current (I) * Resistance (R). This means we can swap things around!

So, we can also say:

10W Metal Resistor 10 ohm - Opencircuit

Power (P) = Current (I)² * Resistance (R)

And my personal favorite, because it directly involves our beloved resistance:

Power (P) = Voltage (V)² / Resistance (R)

See? It’s like a choose-your-own-adventure for calculating heat. Which one is best depends on what you know. Do you know how much "push" (voltage) you're giving it? Or do you know how much is actually "flowing" (current)? Either way, with our 10 ohm resistor, we can figure out the sizzle factor.

Let’s Get Our Hands Dirty (Electrically Speaking!)

Imagine we connect our 10 ohm resistor to a battery. Let’s say it’s a common 5 Volt battery, like the one in your phone charger (though your phone charger is a lot more complex than just a resistor!).

Using P = V² / R:

P = (5 Volts)² / 10 Ohms

10K-Ohm-Resistor-Chart – Circuits Gallery

P = 25 / 10

P = 2.5 Watts

Twenty-five Watts! That’s not a ton of heat. It’s like a slightly warm light bulb. You wouldn't notice it much in a room. It’s the kind of gentle warmth that makes a circuit feel content, not frazzled.

But what if we crank it up? Let’s say we’re not using a tiny battery. Let’s pretend we’re hooking it up to something that can deliver a beefy 10 Volts. This might be something like a powerful LED driver or a small motor circuit.

Using the same formula, P = V² / R:

P = (10 Volts)² / 10 Ohms

P = 100 / 10

P = 10 Watts

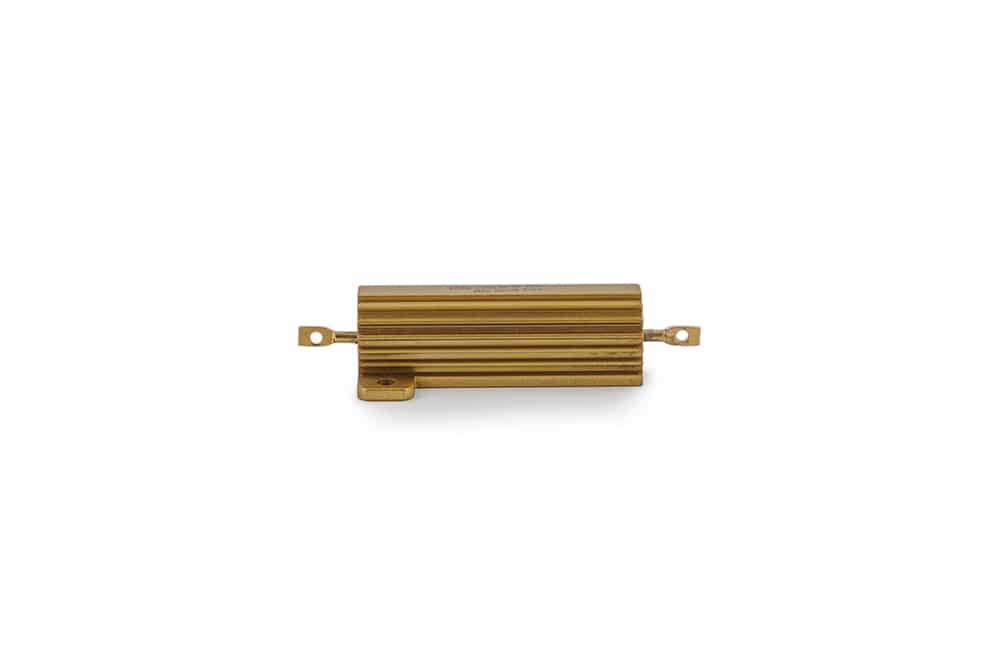

10 Ohm Resistor - Twin Cities Wrecker Sales

Ten Watts! Now we're talking. This is starting to feel like a warm component. If you touched it (don't do that!), you'd definitely feel it. It’s enough heat to be noticeable, maybe even enough to gently warm up a small area. Think of the warmth emanating from a not-too-bright lamp.

The Quirky Side of Resistor Heat!

Why is this fun? Because it’s about control. We can choose how much heat our resistor makes! It’s like being a tiny chef in a world of electrons. We can make a gentle simmer or a more energetic sizzle. It’s also a fundamental building block. Every electronic device you own uses resistors, and they all generate some heat.

Think about the tiny resistors inside your smartwatch. They’re incredibly small, but they’re still doing their job, generating a minuscule amount of heat. It all adds up! Or consider a high-powered amplifier. It uses many resistors, and they can get quite toasty, often needing little fans or heatsinks to keep them from melting into a puddle of goo. It’s a constant dance between making things work and managing the inevitable warmth.

And here’s a funny thought: what if the resistor’s job is to make heat? Like in a toaster! The heating element in your toaster is essentially a very large, very high-resistance wire designed to get super hot when electricity flows through it. Our humble 10 ohm resistor is just a much, much smaller version of that concept.

What about the material of the resistor? That’s another layer of fun. Most resistors are made from carbon or metal film. These materials have specific electrical properties. The way they are manufactured affects how well they can handle heat. Some resistors are designed to glow red-hot without burning out, while others are quite delicate.

When Things Get Really Hot

Let’s push our 10 ohm resistor to its limits. What if we used a massive 100 Volts? (Again, don't try this at home unless you're a seasoned pro with safety gear!).

P = V² / R

[ANSWERED] 24 In a circuit shown in figure the heat produced in ohm

P = (100 Volts)² / 10 Ohms

P = 10000 / 10

P = 1000 Watts

WHOA! 1000 Watts! That’s as much as a small oven! Our little 10 ohm resistor would be glowing brightly. It would probably smoke, melt, and generally have a very bad day. This is why engineers have to be super careful about the power rating of a resistor. A resistor has a maximum power it can handle before it gives up the ghost.

A typical little carbon resistor you might see on a circuit board might be rated for ¼ Watt (0.25W) or ½ Watt (0.5W). Pushing it beyond its rating is like asking a kitten to lift a car. It’s just not built for it, and bad things happen.

So, while our 10 ohm resistor can produce a lot of heat, it’s usually used in circuits where the voltage and current are carefully controlled so it only generates a manageable amount of warmth. It’s all about balance and engineering!

The Takeaway? It's Electrifyingly Fun!

So, how much heat does a 10 ohm resistor produce? It’s not a single, fixed number. It's a dynamic result of the electrical "ingredients" you throw at it. It can be a gentle warmth, a noticeable heat, or, if you’re not careful, a spectacular fiery demise!

Understanding this is key to how all electronics work. It’s the hidden magic behind why your gadgets get warm. It’s the fundamental physics that keeps the digital world humming along. And it all starts with a simple concept: electricity flowing through an obstacle creates heat. Pretty neat, right? Keep an eye out for those resistors; they’re working harder than you think!
